Customization Available. OEM and ODM services.

Production time will take 30 days for any quantity. Shipping, to any part of the world, will take 30 days.

Have your equipment ready to unload.
Description

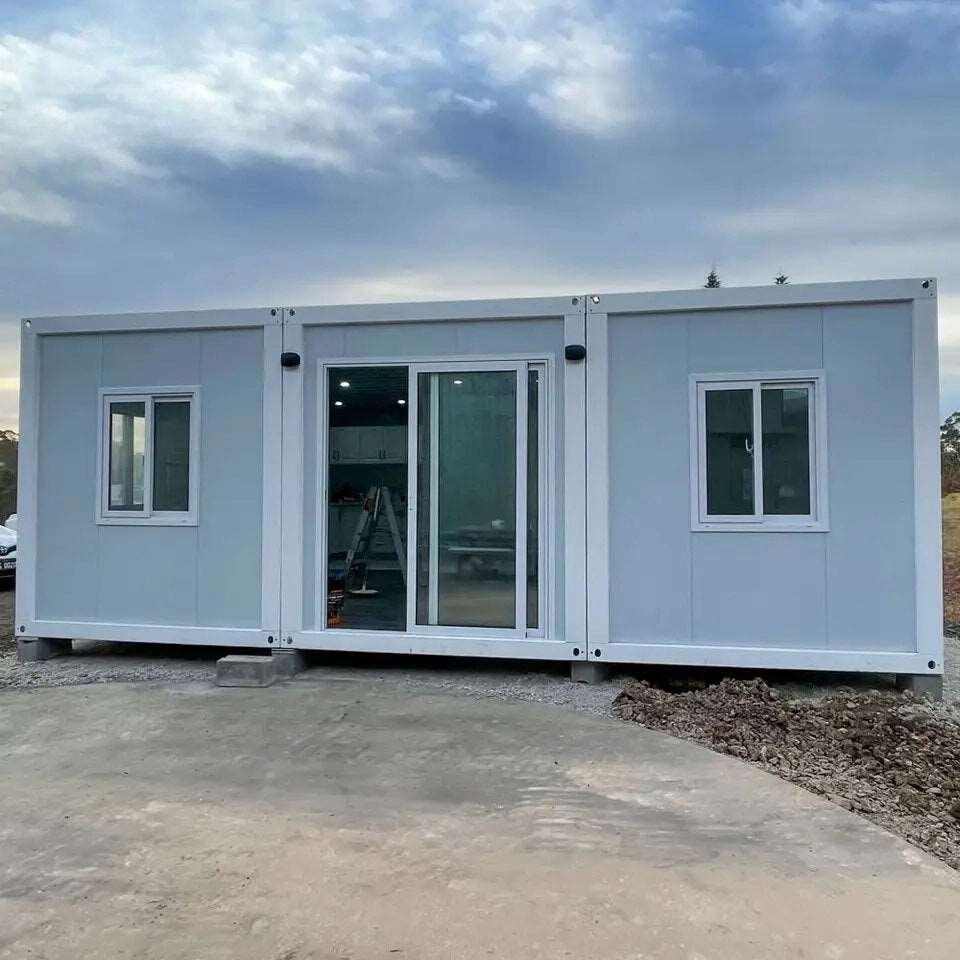

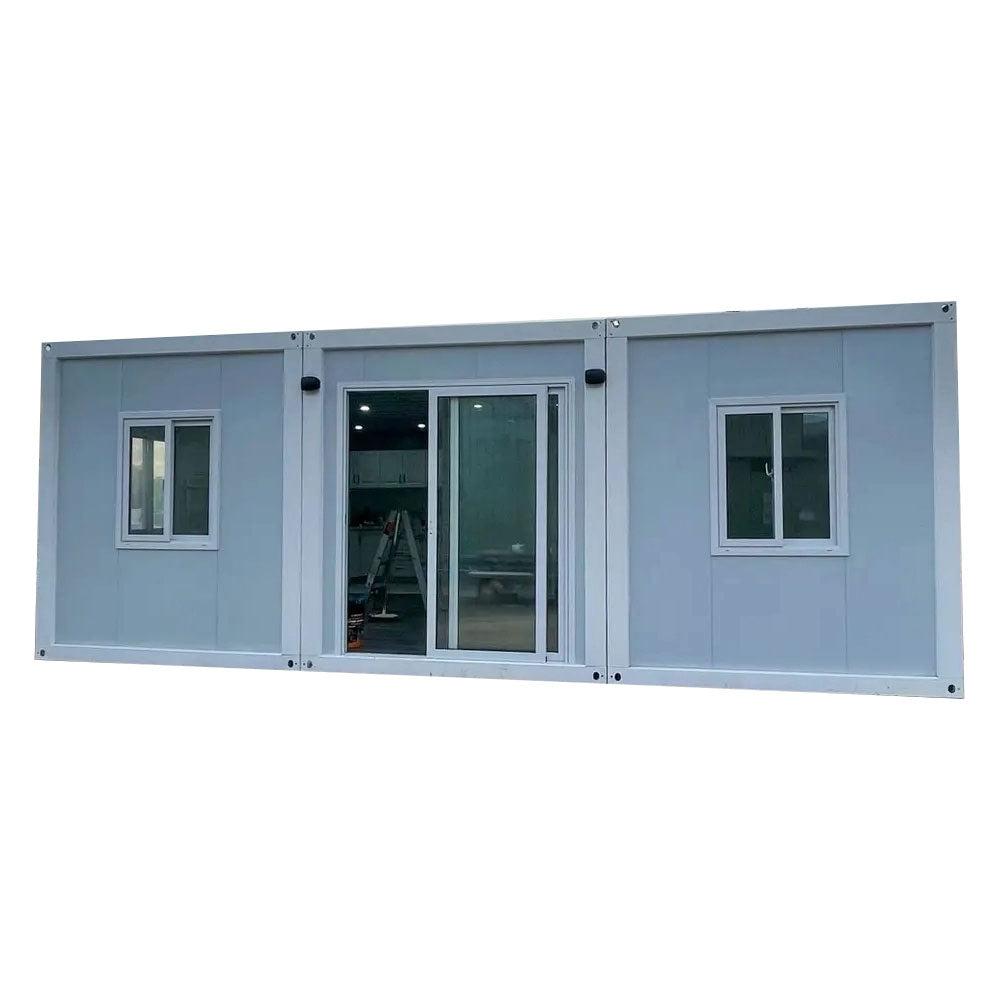

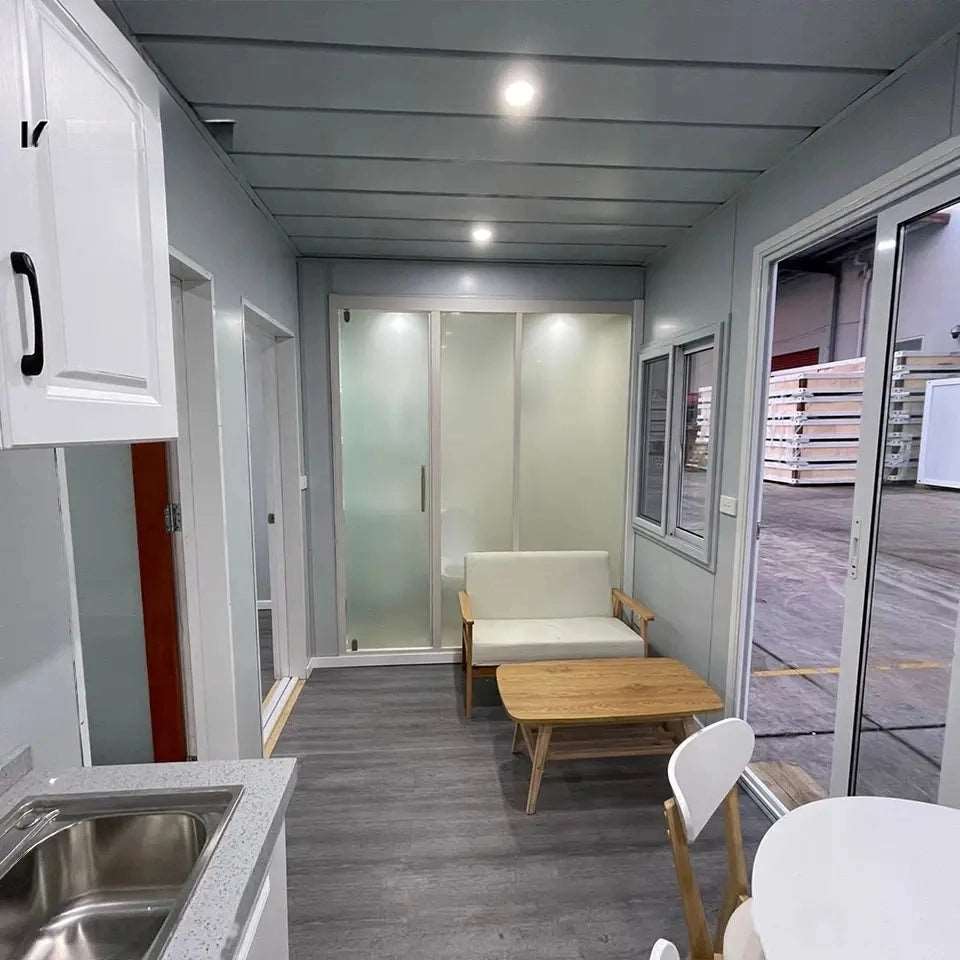

Our 43sqm prefab container home embodies compactness, efficiency, and modernity. With innovative design, it optimizes space utilization, ensuring functionality and comfort. Natural light floods through large windows, creating an airy atmosphere, and the eco-friendly features promote sustainability. This stylish and sustainable home offers a cozy and practical living environment, perfect for those seeking a contemporary and eco-conscious lifestyle.
Assembly required.
Includes the following

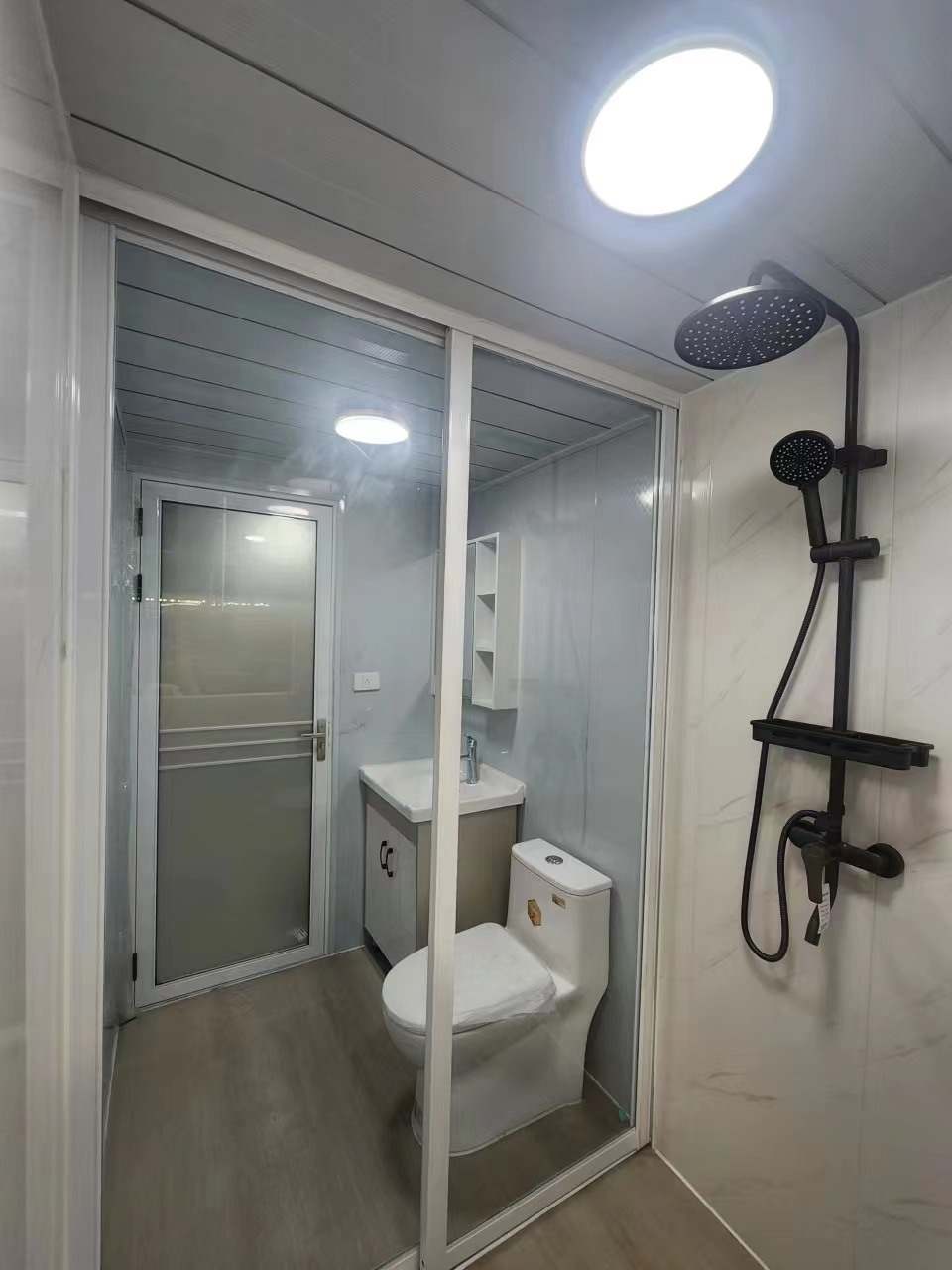

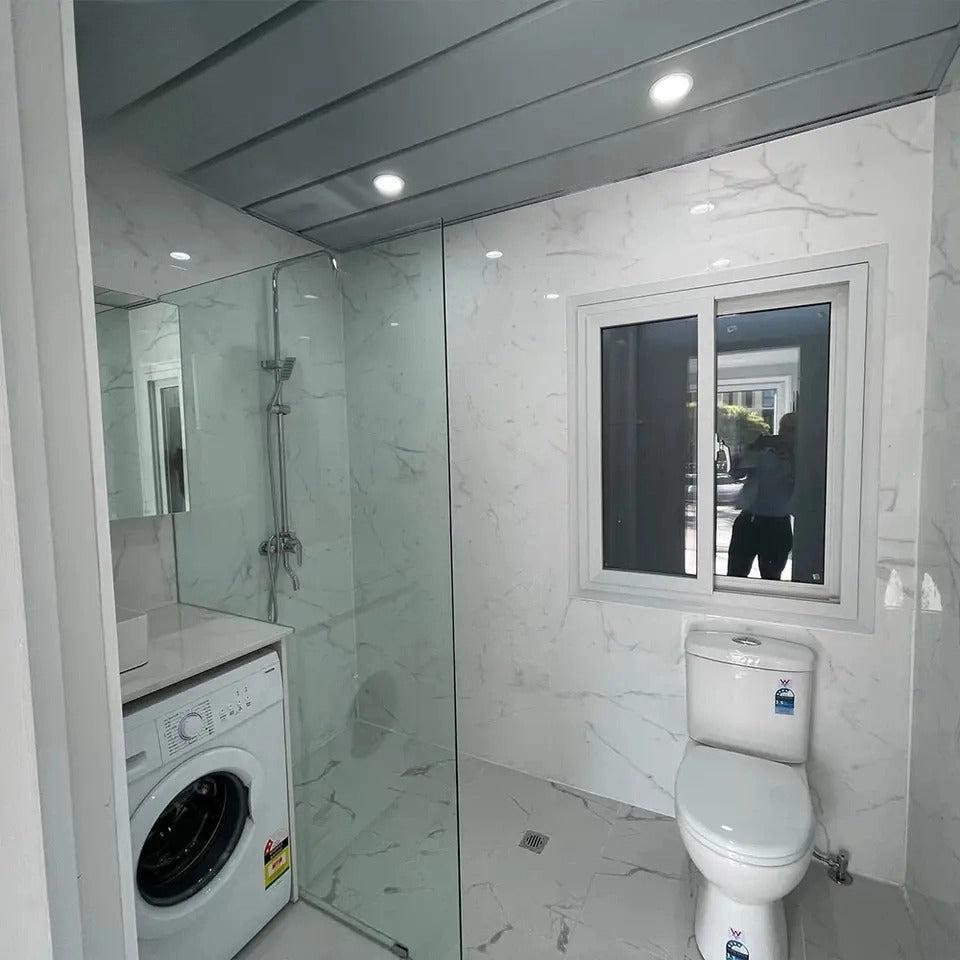

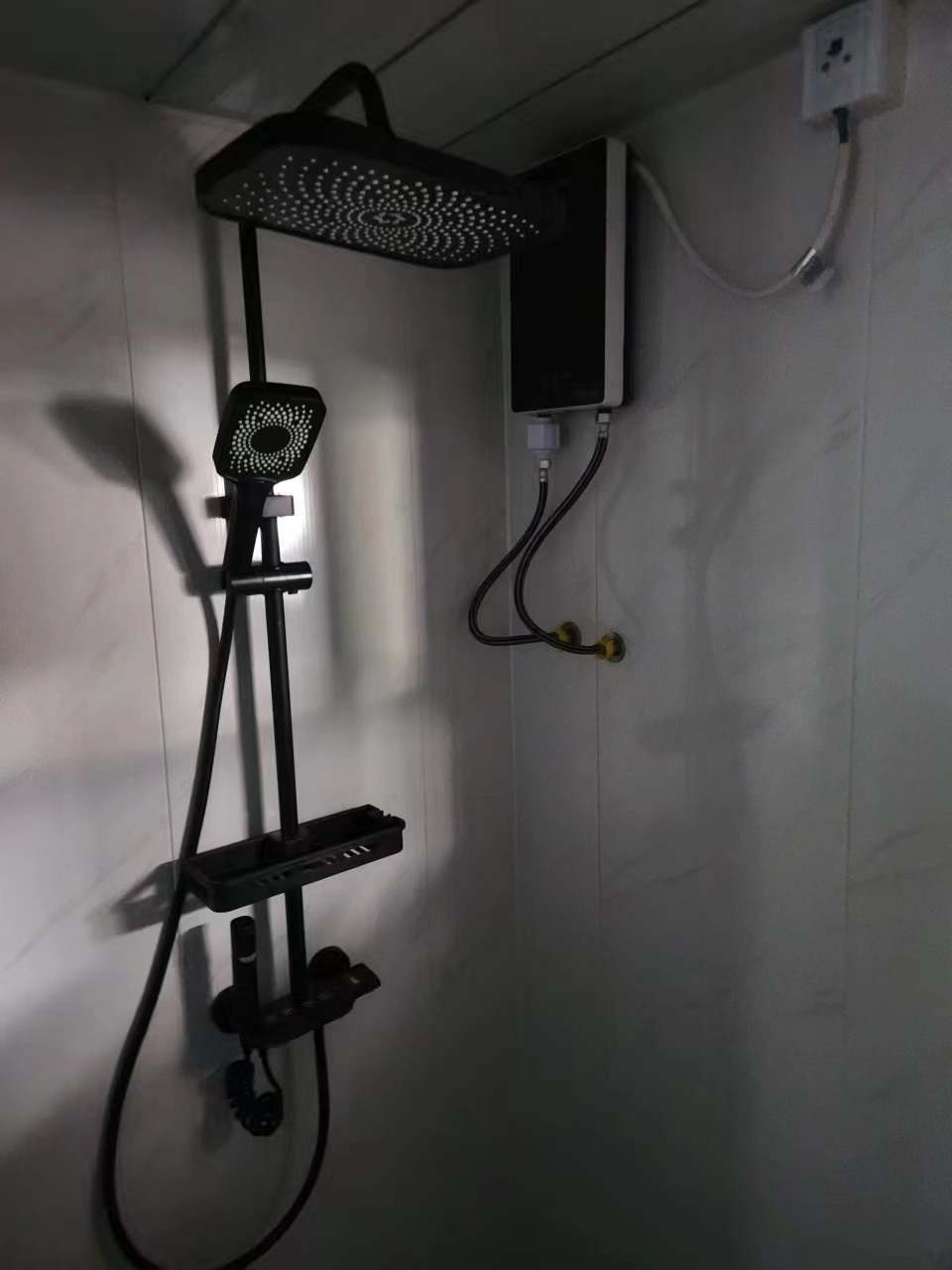

1. Full Bathrooms(Sink, Toilet, Shower room. Check pic)
2. PVC Flooring
3. Electrical system(Switch, breaker, outlet, basic lightings)

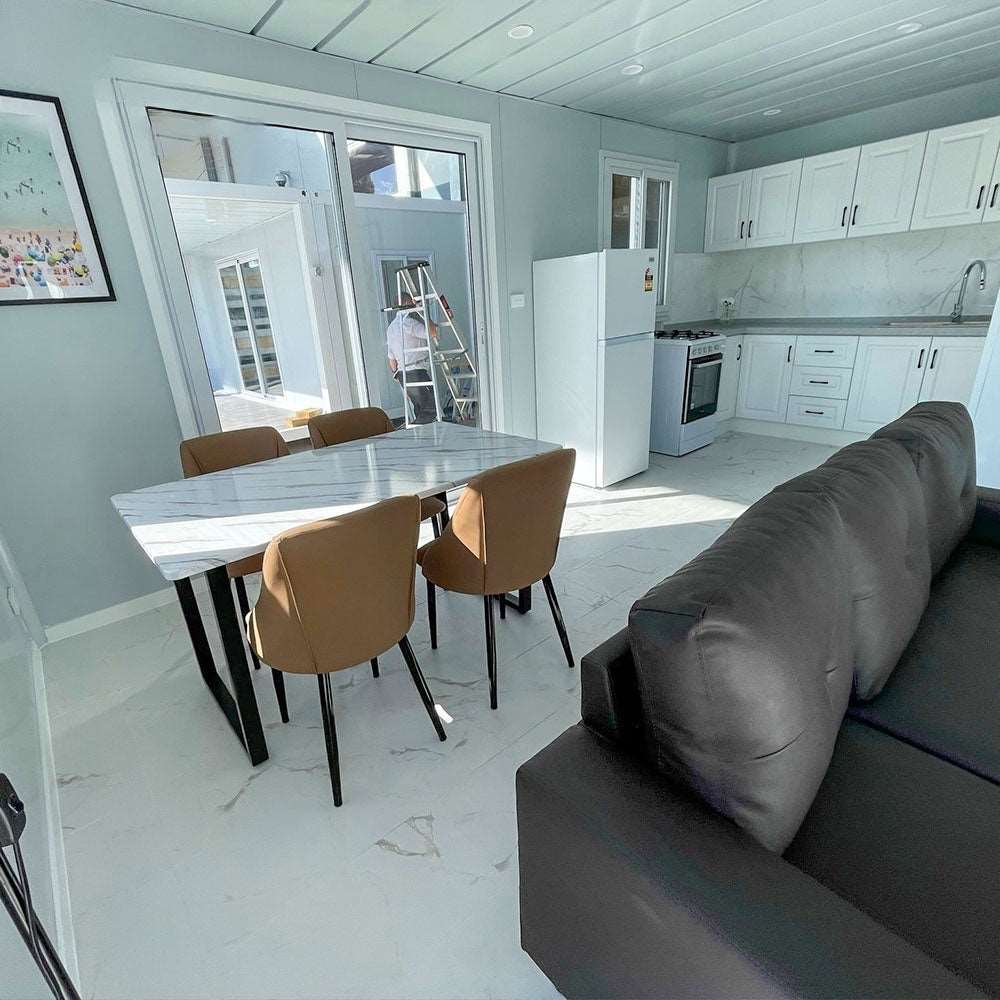

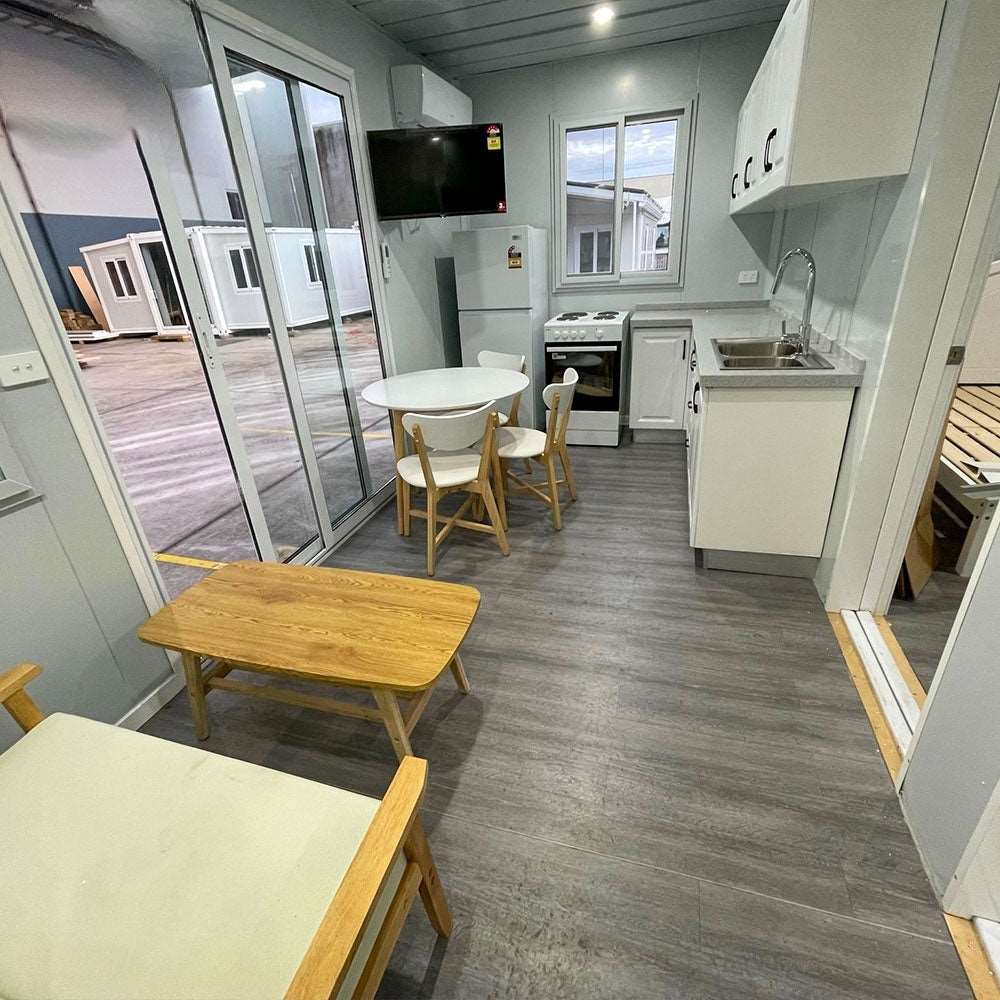

4. Kitchen cabinets and sink(Check pic)

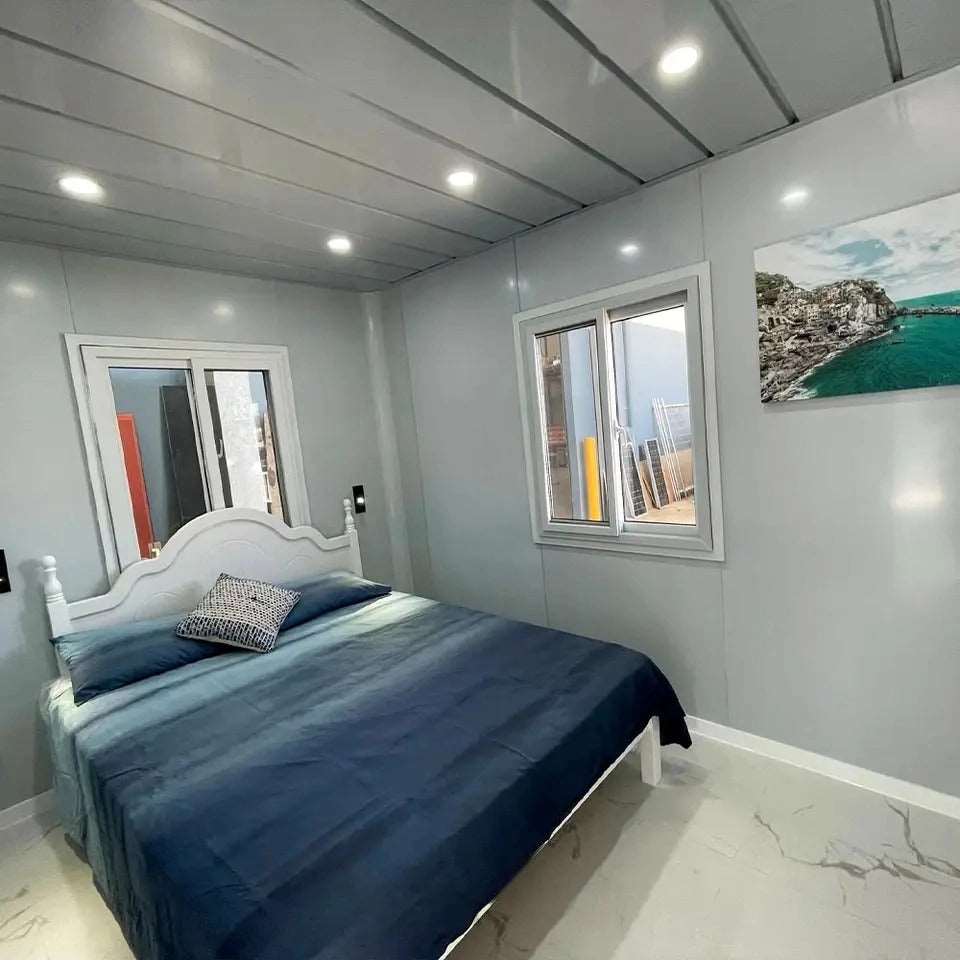

5. 2 Bedrooms
Furniture, bed, fridge, washing machine are NOT INCLUDED.
Specification
External dimensions:
L5990*W7305*H2896mm Internal dimensions: L5830*W6825*H2515mm |
Weight: 8700 lbs.
|
|
Profile: 2.3mm top frame
|
top frame
|
2.3mm galvanized forming beam, galvanized content 80g/㎡, 180mm wide and 5568mm long
|
2.3mm galvanized forming beam, galvanized content 80g/㎡, 180 wide and 2133mm long
|
||
Galvanized C90*30*20 cross brace, galvanized content 80g/㎡
|
||
20*20mm galvanized square tube, galvanized content 80g/㎡
|
||
W water retaining plate, galvanized content 80g/㎡
|
||
Lower beam angle steel flashing, 5630mm
|
||
Angle steel flashing of lower beam, 2195mm
|
||
Profile: 2.3mm bottom frame
|
Bottom frame
|
2.3mm galvanized forming beam, galvanized content 80g/㎡, 160 wide and 5568mm long
|
2.3mm galvanized forming beam, galvanized content 80g/㎡, 160 wide and 2133mm long
|
||
Galvanized "Ji" steel cross brace, galvanized content 80g/㎡
|
||
Integrated sink with flashing base, L5630mm
|
||
Integrated sink with flashing base, L2195mm
|
||
Profile: 2.3mm column
|
column
|
2.3mm galvanized column, galvanized content 80g/㎡ 210 wide, 150 wide 2536mm
|
Connector 2.0mm, galvanized content 80g/㎡
|
||
L-shaped column reinforcement
|
||
Special hanger for container house
|
hanging head
|
8mm corner fittings, galvanized content 80g/㎡ 200mm high 150mm wide 210mm long
|
8mm corner fittings, galvanized content 80g/㎡ 160mm high 150mm wide 210mm long
|
||
Lock capping plate Single tile capping
|
Single tile roofing
|
0.4mm color steel single tile, 360-degree joint, special waterproof method
|
Auxiliary material Moisture-proof
|
Moisture-proof
|
Moisture-proof film, PE resin film 1.0mm
|
Auxiliary material 100 glass wool
|
100 glass wool
|
100mm glass wool insulation quilt + tinfoil, 14kg/m³
|
Auxiliary Material Color
|
color
|
Electrostatic spraying of outdoor special paint, baking varnish process, no discoloration for 5 years
|
Auxiliary material Bolt
|
bolt
|
Inner hexagon (galvanized)
|
downspout downspout
|
Downspouts
|
50 downspout
|
ceiling tile
|
Ceiling tile
|
0.3 thick, 831 color steel integrated ceiling board, film-coated
|
Floor Concrete pressure plate
|
cement pressure plate
|
18mm thick, 1175*2820mm
|
Floor Decoration Plastic Floor
|
Plastic flooring
|
1.6mm, wear-resistant plastic floor leather
|
door steel door
|
steel door
|
970*1970mm 0.4mm (1150 type wallboard)
|
Window Plastic steel anti-theft window
|
Plastic steel anti-theft window
|
1130*1130mm double glass 0.3mm (1150 type wall panel)
|
Auxiliary materials
|
Auxiliary material
|
screw, sealant
|
Electric Advanced Electric Distribution
|
Advanced distribution
|
Industrial socket box + industrial socket 16A (1 set), distribution box J-8 (1), leakage protection (16A) (1), circuit breaker
(2P32A) (1), circuit breaker (2P10A) ordinary socket 16A ( 3), air conditioner socket 32A (1), switch 1, long lamp 2 |
Wallboard 0.3mm on both sides (Type 950)
|
Double-sided 0.3mm (Type 950)
|
50*950mm double-sided 0.3mm 50kg/m³ rock wool board, orange peel outside and flat inside
|
